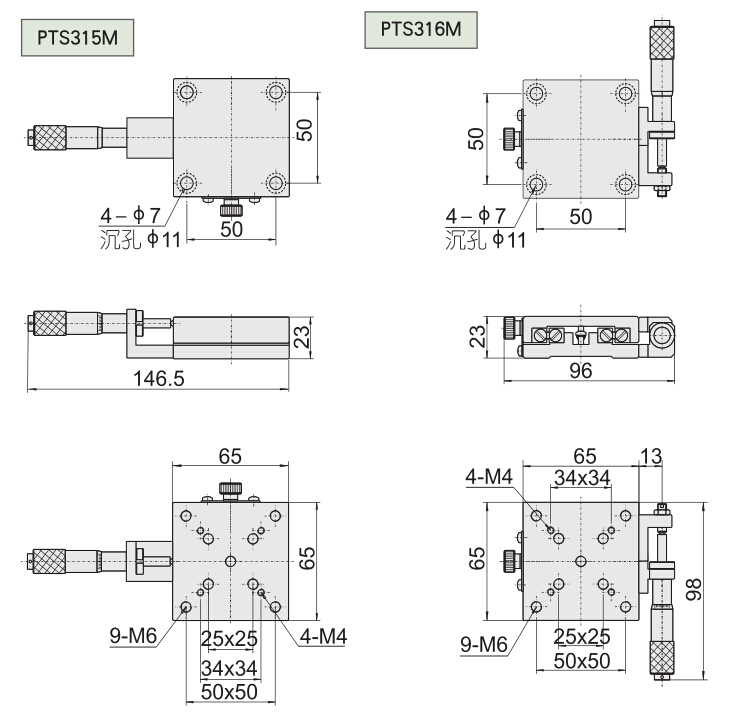

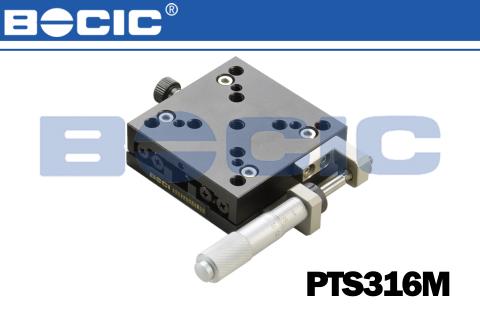

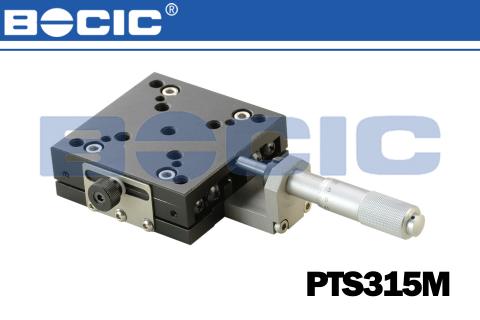

PTS310 series precision thin design postitioning stages

1.Actuated with V-shapedguide and linear roller.

2.High precision and large bearing capacity

3.Thin design ,small size

4.Micrometer headadjustment

5.Micrometers are located at the middle.

6.The motion can be easily locked withthe knobon the side of the stage.

7.Standard threaded holes on both top and bottom of the stages allow secure mounting to optical tables, or additional stages for multi-axes translation.
