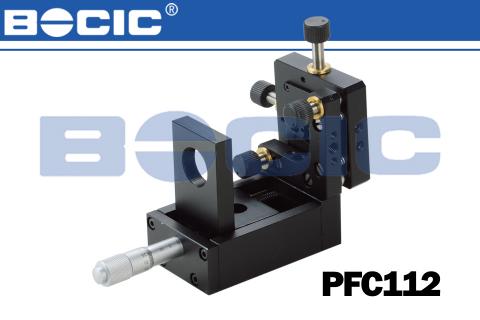

PFC112 precision fiber coupler

1. Increase a micro lens mount on the basis of PFC111 fiber coupler, convenient to use a microscope objective to couple both beam and optical fiber

2. Driving by micrometer head, Continuously measure the distance  between the objective and pinhole

3. There are connecting holes on the lower part, convenient to connect it with the other stages or compose multi dimensional stage.

4. Standard FC or SMA905 interface



      FC interface         SMA905 interface
